Metal Spray & Specialty Coatings

Increase Run Times
Shorten Downtime
Restore Dimensions
High Wear Resistance
Portable Process
Corrosion Protection
Low Heat Distortion
Aircraft Approved
Thermal Barriers
Abrasion Resistance
Good Machinability
High Bond Strength
Seal Fits
Bearing Fits
Unusual Shapes
Robotic Application
Full Machine Shop
ISO Certified

"Metalizing" or metal spray: A term applied to pure metal sprayed coats (not paint) as opposed to other methods of applying metallic coatings such as hot dip galvanizing or electroplating. Metalizing equipment is mobile, appropriate for many complex shapes and not limited by size. Metalizing may be used alone or in combination with other coating systems, and drastically increases the adhesion of topcoats when they are applied over metalized coatings.

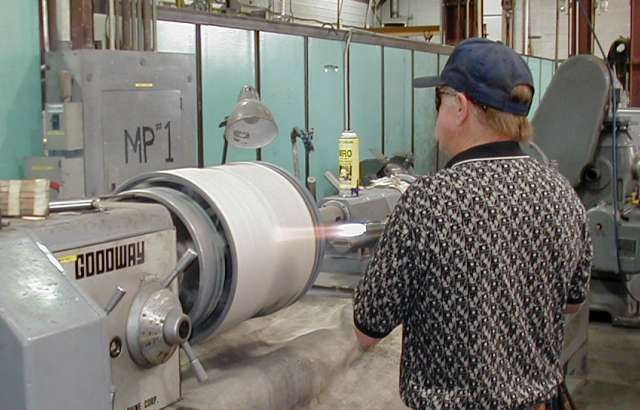

Babbit Spraying Compressor Cross Head

Prime Machine utilizes the three major types of spray methods, including the recently- developed high-velocity oxy-fuel (HVOF) process.

The three types are; Flame or Arc Spray-and-Fuse, Plasma Spray, and HVOF.Carbide Coating Rod

Wear Coating Compressor Rods	Spraying Of Inside Diameters

Sprayed materials include:

HVOF - Carbide Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Tungsten Carbide Cobalt WCCO	63-66 RC	>10,000 PSI	•Pump seals •Rolls •Jet engine parts •Machinery wear parts
Chrome Carbide Nickel Chrome Cr3C2NiCr	65 RC	>10,000 PSI	•Turbine inner nozzle supports •Turbine exhaust struts •Fuel rod mandrels •Exhaust valves
Tungsten Carbide Chrome WcCoCr	64 RC	>10,000 PSI	•Pump shafts with corrosion

HVOF - Metal & Alloy Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Cobalt Molybdenum Chromium CoMoCr	50-55 RC	9500 PSI	•Very dense and well bonded •Good for pump components, valve shafts and exhaust fan blades •Excellent fretting wear
Iron Chrome Molybdenum FeCrMo	53 Rb	7500 PSI	•Excellent for corrosive and sliding wear below 1200°F
Nickel Aluminum NiAl	45 Rb	6000 PSI	•Bond-coat for carbides and ceramics •Coating offers wear and oxidation protection
Copper Cu	60 Rb	4000 PSI	•Exceptionally dense and machinable •Restoration of worn and mis-machined copper and copper-alloy parts

HVOF - Ceramic Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Aluminum Oxide AL203	68 RC	5000 PSI	•Very Smooth, with high dielectric (600-900 V/Mil)

Plasma Spray - Ceramic Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Aluminum Oxide Al2O3	RC-71	5000 PSI	•Dielectric covering, textile parts •Pump shaft (seal areas)
Chromium Oxide Cr2O3	RC-74	5000 PSI	•Very hard, very high corrosion protection •Sliding wear for chemical pump shaft wear
Aluminum Oxide Titanium Dioxide Al2O 3TiO2	RC-69	5000 PSI	•Anti-static, cylinder liners •Molds, sliding wear from fibers •Resistant to acids and alkalis •Many textile applications

Plasma Spray - Carbide Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Tungsten Carbide WCCo	60 RC	7,500 PSI	•Machine wear •Jet engine parts •Sliding wear (metal parts)
Chrome Carbide Cr3C2NiCr	46 RC	5,000 PSI	•Promotes extreme resistance to wear at high temperatures •Good for hot gas and corrosion resistance •Useful up to 1600°F
Tungsten Carbide Chrome WCCoCr	50 RC	7,500 PSI	•Improved oxidation and corrosion protection over WCCO •Excellent low-temperature wear properties up to 900°F

Plasma Spray - Metal & Alloy Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Nickel Aluminum NiAl	45-55 RC	8,000 PSI	•Highly resistant to oxidation and corrosion •Very machinable •Excellent bond-coat for ceramics
Copper Nickel Indium CuNiIn	75 Rb	3,500 PSI	•Indium is renowned for its lubricating properties •Outstanding resistance to motion wear such as fretting and galling
Molybdenum Chromium Silicon Cobalt MoCrSiCo	45 RC	6,500 PSI	•Coating exhibits outstanding resistance to wear and galling •Very suitable for applications where lubrication is a problem

Plasma Spray - Thermal Barrier Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Magnesium Zirconia MgO2ZrO2	RC 31	2,600 PSI	•Thermal barrier coatings for combustion applications •Abrasive wear up to 1600°F
Zirconia Titania Yttria ZrO2TiO2Y2O3	RC 55	5,000 PSI	•Thermal barrier coating •High temperature hardness •Resitance to sulfidation, chlorinization and sodium hot corrosion

Arc Spray - Metal Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Aluminum Al	Rb 35-75	4,350 PSI	•Chemical and corrosion resistance •Electrical conductivity •Aircraft approved
Copper Cu	Rb 37	7,200 PSI	•Extreme conductivity •Copper reclamation •Alternate to copper plating •Decorative coatings
Nickel Ni	Rb 58	4,100 PSI	•Corrosion protection at high temperatures •Excellent machined surfaces •Aircraft approved
Tin Sn	Rb 70	2,500 PSI	•Sputtering targets •Electrical contacts •EMI/RFI shielding
Zinc Zn	Rb 61-72	1,300 PSI	•Excellent bonding to non-metallic surfaces •Corrosion •EMI/RFI Shielding

Arc Spray - Alloy Coatings

Materials/ Chemistry	Hardness	Bond Strength	Application Data
Inconel 718 NiCrMo	RC 30	9,000 PSI	•Aircraft engine dimensional restoration •Acidic and hot gas corrosion resistant
Iron Chrome Aluminum FeCrAl	Rb 88	7,000 PSI	•Good for build-up •Good machinability •Excellent wear resistance
Nickel Aluminum NiAl	Rb 78	9,800 PSI	•Bond Coat •Oxidation/abrasion resistance at high temperatures •Aircraft approved
420 SS FeCrNiSi	Rb 40-45	8,000 PSI	•Corrosion protection •Dimensional restoration
